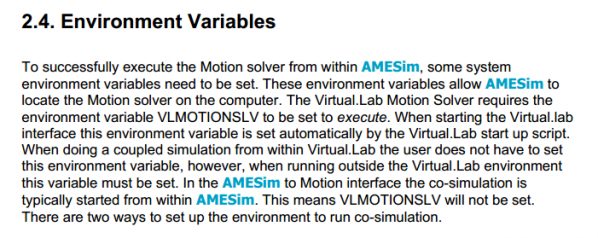

这个问题可以参考help->demo help->demos->platform->1D/3D CAE->起落架这一节,里面有更详细的环境变量设置,表示是新手,不知道怎么添加图片窒息
32bit
set VLMOTIONSLV=D:\Programs\LMS\Virtual.Lab.R12\DynMotionSolver
set PATH=%VLMOTIONSLV%\execute\intel;%VLMOTIONSLV%\execute\intel\user;%PATH%
set PATH=D:\Programs\LMS\Virtual.Lab.R12\intel_a\code\bin;%PATH%
The corresponding for a 64bit Motion installation:
set VLMOTIONSLV=D:\Programs\LMS\Virtual.Lab.R12\DynMotionSolver
set PATH=%VLMOTIONSLV%\execute\intel64;%VLMOTIONSLV%\execute\intel64\user;%PATH%
set PATH=D:\Programs\LMS\Virtual.Lab.R12\win_b64_a\code\bin;%PATH%
以上环境变量都是根据自己的安装路径设置的,希望帮到大家
