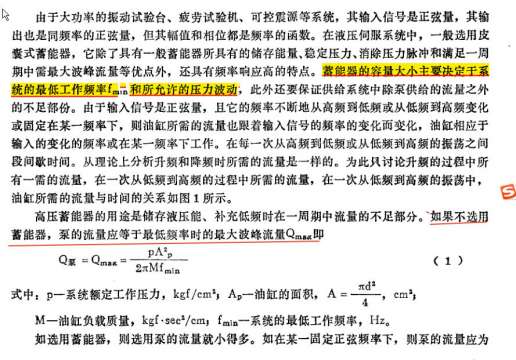

蓄 能 器 的 容量大 小 主 要 决定 于 系统 的 最低 工 作 频率 f mi n和 所允许 的压 力 波 动,这句话怎样理解?
如果不选蓄能器,流量不是应该等于最高频率的流量吗? 怎么是最低频率?
再有一问题,如果系统流量足够,满足动态加载流量,伺服加载系统可否不用蓄能器(不考虑节能)


伺服系统中蓄能器

伺服系统中蓄能器
  • 打卡等级:无名新人
  • 打卡总天数:1
  • 打卡总奖励:1
发表于 2017-4-24 15:17:29 | 显示全部楼层
不懂,坐等解答。
回复 支持 反对

使用道具 举报

发表于 2017-4-26 21:10:17 | 显示全部楼层
楼主,截图是什么书上写的
回复 支持 反对

使用道具 举报

  • 打卡等级:无名新人
  • 打卡总天数:2
  • 打卡总奖励:3
 楼主| 发表于 2017-4-26 21:20:40 | 显示全部楼层
回复houhialong135:不是书上的,是期刊上的。
回复 支持 反对

使用道具 举报

  • 打卡等级:偶尔看看
  • 打卡总天数:101
  • 打卡总奖励:315
发表于 2020-5-16 22:54:59 | 显示全部楼层
这是一个老话题。但是,我使用去年撰写的杂志文章中的公式编写了程序。设计伺服液压系统时应使用蓄能器,因为它可以
1.减小泵的尺寸。存钱。
2.减少压力变化。提高性能。

首先必须知道运动曲线。
然后,必须使用运动曲线来计算流量,需要使用运动曲线和气缸活塞的面积来计算流量。
然后计算储油器中换油量。需要进行模拟以计算从泵添加的油与阀使用的油之间的差。
储油器的尺寸应为油量变化的许多倍,因此压力变化不会超过10%,并且储油器不会用完油。

程序可能会计算不可用的阀门,泵和蓄能器的值。用户可以输入下一个更大的可用大小,程序将使用用户的参数值重新计算。

计算机将尝试不同的组合以寻找最佳解决方案。





This is an old topic.  However, I have written a program using the formulas from the magazine articles I have written in the last year.   An accumulator should be used when designing a servo hydraulic system because it can
1.        Reduce the size of the pump.  Save money.
2.        Reduce pressure changes.   Increase performance.

First the motion profile must be known.
Then the flow must be calculated using the motion profile needs to be calculated using the motion profile and the areas of the cylinder piston.
Then the volume of oil change in the accumulator is calculated.  A simulation is needed to calculate the difference between the oil being added from the pump and the oil used by the valve.
The accumulator should be sized many times the change in oil volume, so the pressure does not change by more than 10% and the accumulator is does not run out of oil.

Chances are the program will compute values for the valve, pump and accumulator that are not available.  The user can enter the next larger available size and the program will recalculate using the user’s parameter values.

The computer will try different combinations in a search for the best solution.




回复 支持 反对

使用道具 举报

  • 打卡等级:常驻居民
  • 打卡总天数:422
  • 打卡总奖励:1270
发表于 2020-11-1 13:51:28 | 显示全部楼层
楼上是外国人吗。。。
回复 支持 反对

使用道具 举报

  • 打卡等级:无名新人
  • 打卡总天数:15
  • 打卡总奖励:59
发表于 2020-11-4 17:30:47 来自手机 | 显示全部楼层
用储能可免系统受其他元件如变量泵、溢流阀的动态性能干扰。
回复 支持 反对

使用道具 举报

  • 打卡等级:无名新人
  • 打卡总天数:1
  • 打卡总奖励:2
发表于 2022-9-26 21:04:54 来自手机 | 显示全部楼层
求推荐此截图的相关资料
回复 支持 反对

使用道具 举报
